CHMER EZ Series CM323Z

CM323Z ZNC Sinker EDM

The CHMER ZNC Series Sinker EDMs offer an affordable solution for many EDM applications. If you are making single cavity molds or short run EDM production, the ZNC EDM might be the solution.

Unlike a manual die sinker, the ZNC offers the conversational EZ control. This conversational control has the built-in cutting technology to easily select the correct cutting technology after answering the questions: electrode type, workpiece material, electrode shape and surface finish. The ZNC control will automatically select the recommended cutting technology. The ZNC model includes scales and DROs on all three axes for ease of setup and Z depth control.

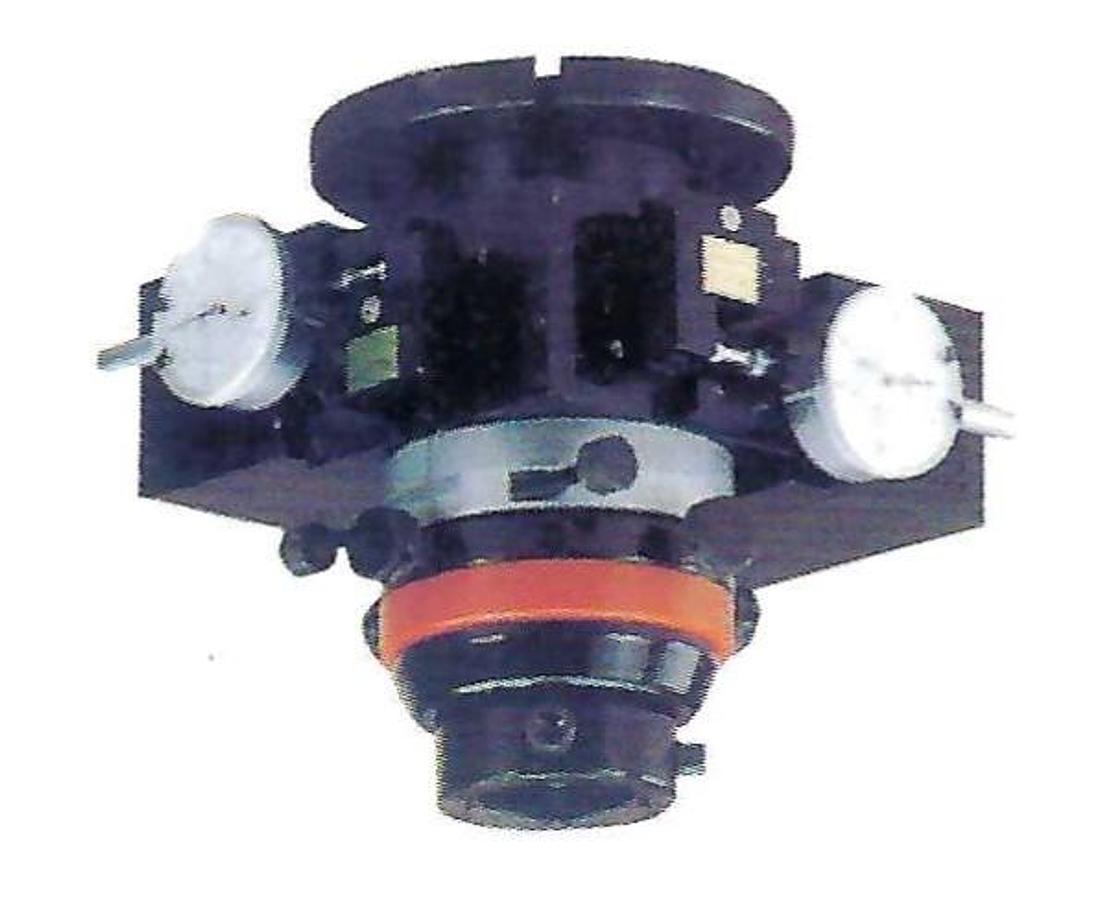

In addition, with the optional Loran orbitor, you can program a cavity and activate the Loran, based on the Z depth, all from the CHME ZNC control. The Loran has +/- 5mm of travel so you can expand an opening in square, circular, vector or many other modes. You can even insert threads into hard metal using threaded electrodes and circular orbits. Improve surface finishes, reduce electrode sizes, increase speed with the optional Loran.

Power supplies from 50-300 amps. On-site operator training is included.

Specifications:

Table size (WxD): 500 x 350mm (19.7" x 13.8")

Table travel (X Y): 300 x 200mm (11.8" x 7.9")

U,V axis travel (OB): +/- 5

Work tank size (W D H): 820 x 500 x 300mm (32.2" x 19.7" x 11.8")

Ram travel (Z): 300mm (11.8")

Distance from Ram platen to worktable: 250 - 550mm (9.8" - 21.7")

Max. electrode weight (w/o OB): 60kg (132 lbs.)

Max. electrode weight (w/OB): 15kg (33 lbs.)

Max. workpiece weight: 500kg (1,100 lbs.)

Outside dimensions (WxDxH): 1300 x 1300 x 2150mm (51.2" x 51.2" x 84.6")

Weight: 1000kg (2,200 lbs.)
