Description

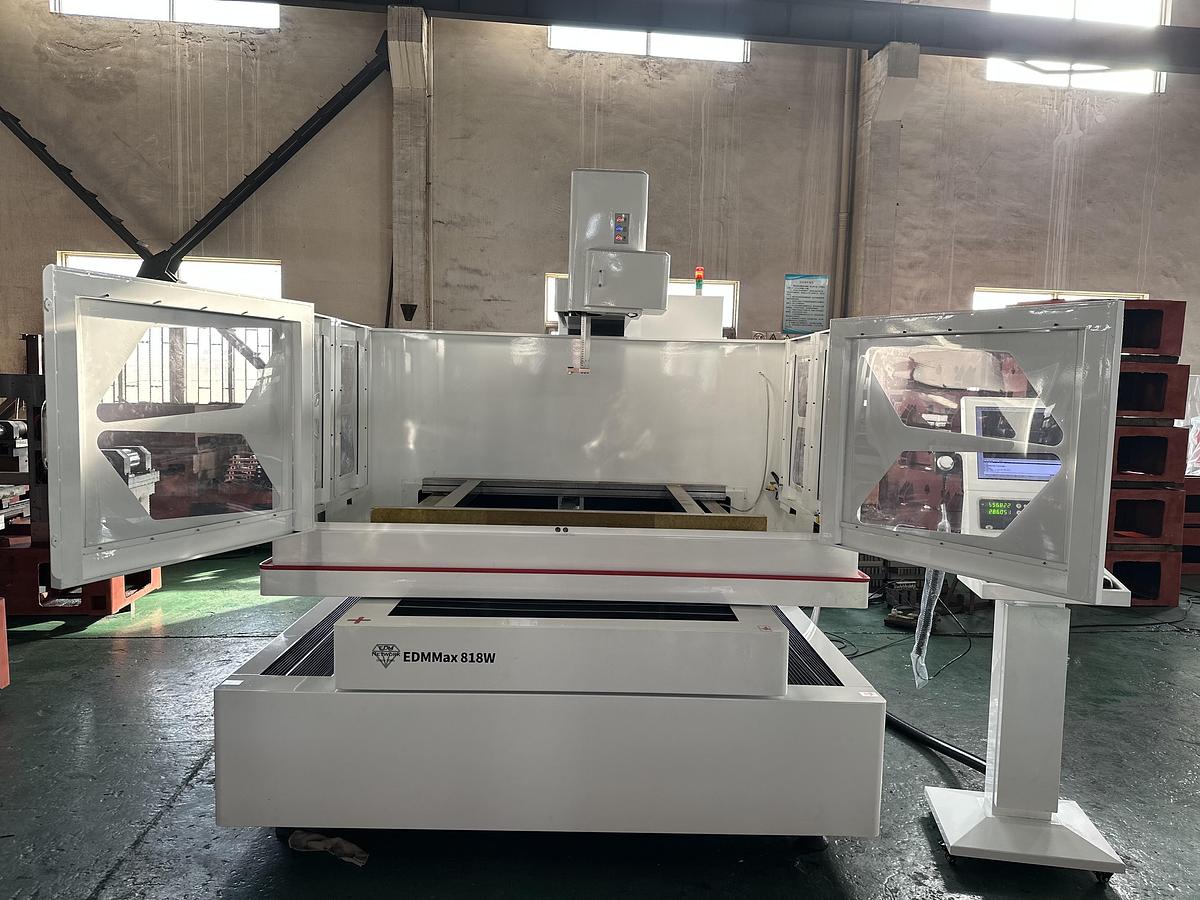

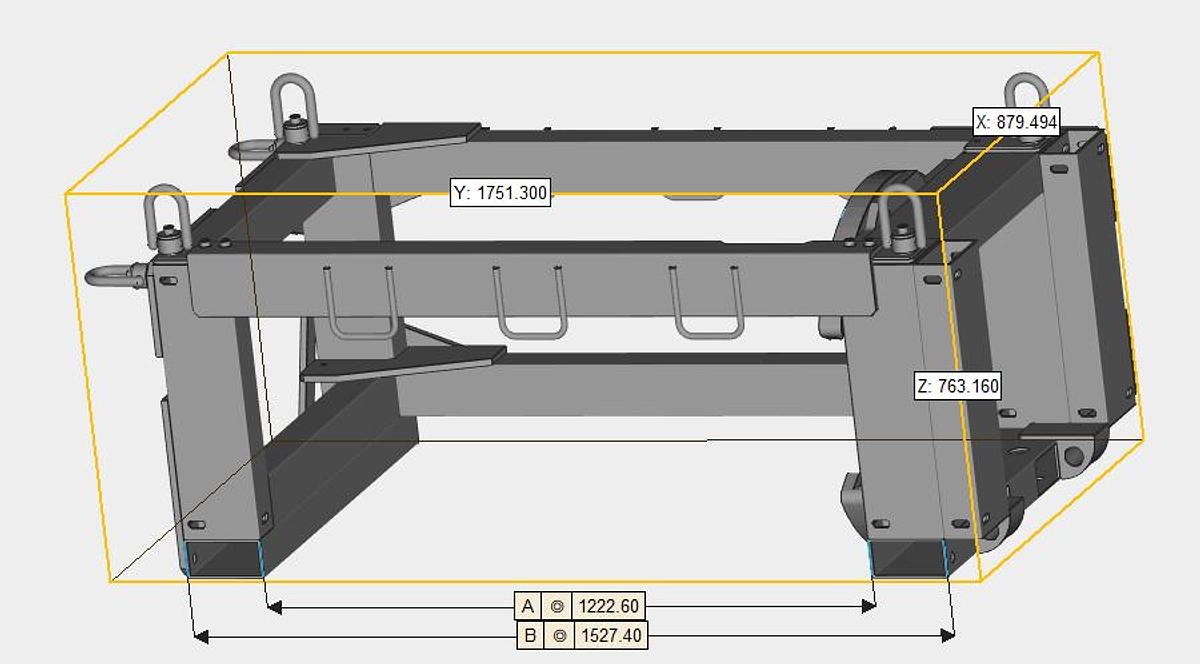

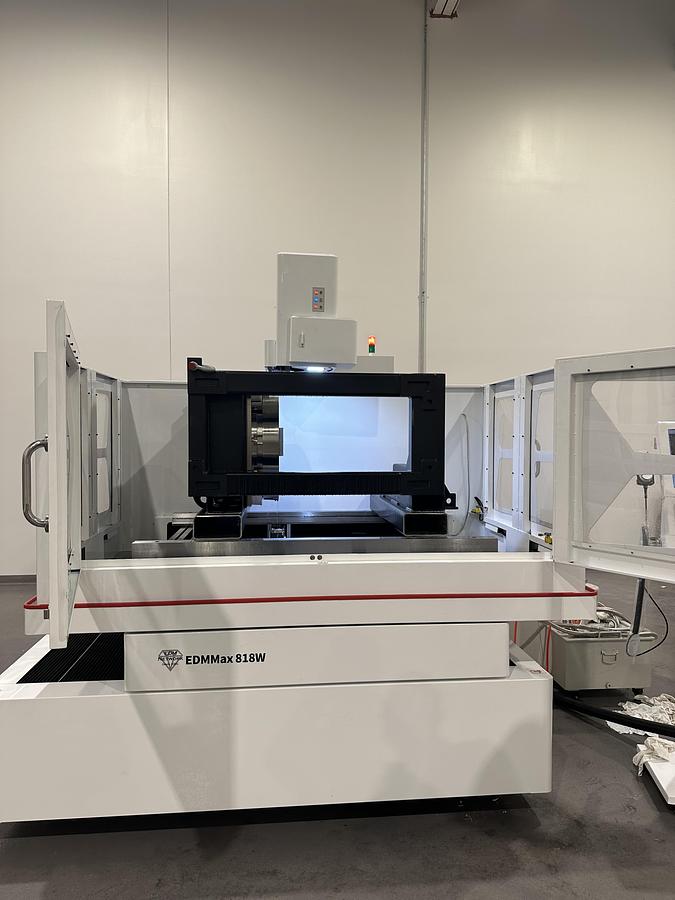

The new large format EDMMax 818W was designed to accommodate the very large fixture and build plates being printed today. Builds and build plates up to 78" high can be cut inside the 78" x 43" x 33" work tank. Build plates 800 x 800mm (31.5" x 31.5") can be wire cut in the Y-axis direction. Total cut area inside the 4-axis work area is 800 x 800 x 800mm. Weight capacity is 6000 lbs.


Standard features include:

  • 4-Axis cutting (taper cutting)
  • Built-in CAD system
  • USB and LAN inputs
  • AC and DC cutting power
  • 3-Pass Cutting Technology for better accuracy and surface finishes


Installation and On-site Training included.




Show All

Specifications

ManufacturerEDM Network
ModelEDMMax 818W Fast Wire EDM
ConditionNew
Travels (XYZ):1000 x 800 x 800 mm / 39.4" x 31.5" x 31.5"
Max. workpiece weight:2000 kg / 4400 lbs.
Max. workpiece size:787 x 787 x 1778 mm / 31" x 31" x 70"
Footprint:2650 x 2250 mm / 104" x 89"
