EDMMax 434W Fast Wire EDM
EDMMax 434W Fast Wire EDM
$79,500 (USD)
Description
EDMMax 434W Fast Wire EDM
EDMMax - Affordable Fast wire solution for most wire EDM applications. These full 4 axis wire EDMs use .007'' diameter molybdenum high tensile wire. Thaisis "reusable." It is cycled back and forth from a drum continuously, until it is replaced with a new load of wire. One load of molybdenum wire, about 250 meters, will last 80-100 hours at a cost of about $25/load depending on cutting conditions and material type.
The fast wire EDM comes complete with an on-board CAD System, plus you can download programs via USB. It has taper capability of about 3° and dielectric filtration system using disposable paper filters.

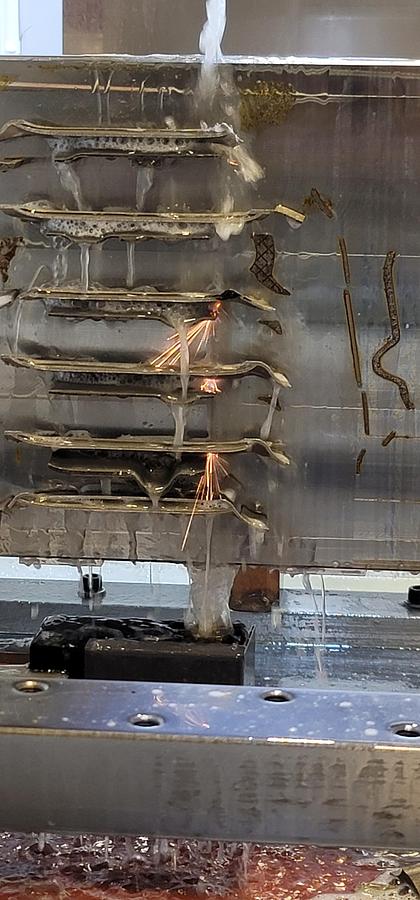

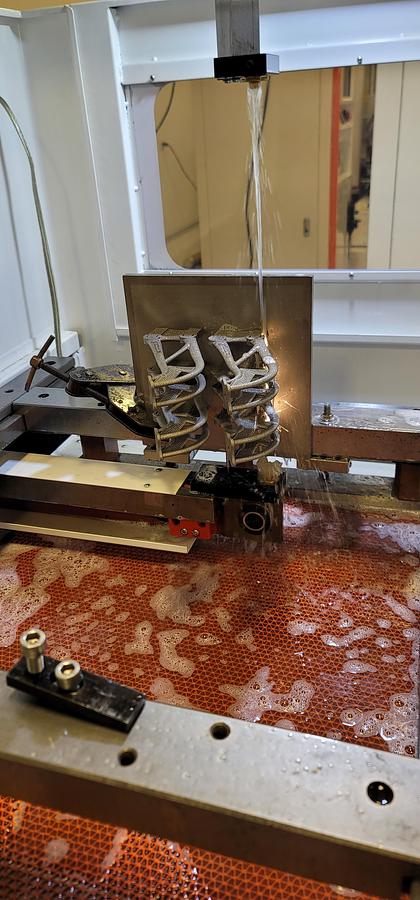

Unlike conventional brass wire EDMs, the Fast Wire EDMs are not "flush dependent." They do not require high pressure flush or submerged cutting to reduce wire breakage. Instead, we use a light oil water additive to the deionized water that allows the water to adhere to the moly wire, thus allowing it to be drawn through the narrow kerf, to remove the EDM swarf, without breaking the wire! This feature makes it ideal for removing the 3D LPBF (Laser Powder Bed Fusion) printed parts from the build plates. These Fast Wire EDMs will typically cut 2-3 times faster than brass wire EDMs in interrupted conditions.
Includes installation and on-site training at no additional cost.
Specifications
| Manufacturer | EDM Network |
| Model | EDMMax 434W Fast Wire EDM |
| Year | 2025 |
| Condition | New |
| Stock Number | 434W- |
| Travels (x y z) | 400 x 300 x 400mm / 15.7" x 12.6" x 15.7" |
| Max. work piece weight | 600kg (1320 lbs.) |
| Footprint: | 2130 x 2000 mm / 84" x 79") |
