AMS AW6SL High Precision Line Motor Wire EDM
AMS AW6SL High Precision Line Motor Wire EDM
Description
The CHMER AW Series Linear Motor High Precision Wire EDMs are built onto a solid T-frame casing for rigidity and precision. The larger models, AW8L and larger, are a fixed table design to allow for heavier workpieces: 3000 - 5000 kg /6600 - 11,000 lbs. Using their own linear motors and Panasonic drivers with precision Fagor glass scales for true positioning, assures optimal accuracy and super fine finishes. Six-pass cutting technology is standard.
These super high precision Wire EDMs are available in eight models from 370 x 270 x 260 mm / 14.6" x 10.6" x 10.2" up to 1500 x 1000 x 350 mm / 59.1" x 39.4" x 13.8". Larger Z-axis stroke is optional.

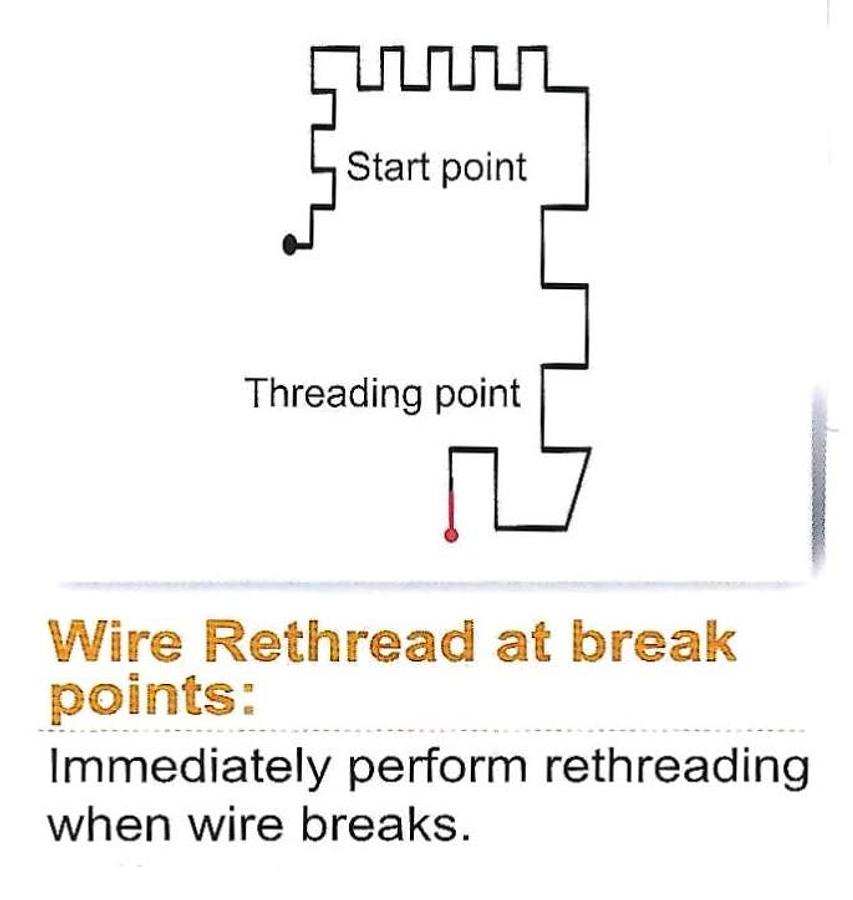

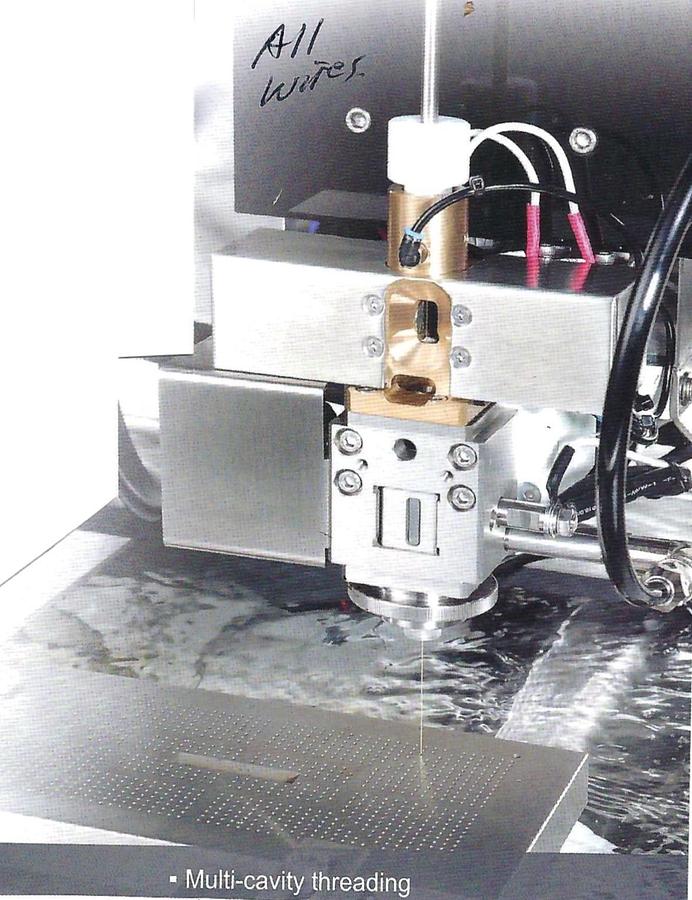

Equipped with the best AWT in the EDM industry that can rethread a broken wire on location, under water and through the kerf in 10 seconds - reliably! Only five moving pieces makes maintenance very low and reliability very high. The AW Series offers the largest selection of super high precision wire EDMs especially in the larger format models.
Precision, reliability and affordably priced!
Installation and On-site Training are included.
Specifications
| Manufacturer | CHMER EDM of Taiwan |
| Model | AW6SL |
| Condition | New |
| Travels (X Y): | 650 x 450 mm / 25.6" x 17.7" |
| Travels (U V Z): | 120 x 120 x 300 mm / 4.7" x 4.7" x 11.8" |
| Max. workpiece size: (LWH) | 1050 x 750 x 300 mm / 41.3" x 29.5" x 11.8" |
| Max. workpiece weight: | 600 kg / 1320 lbs. |
