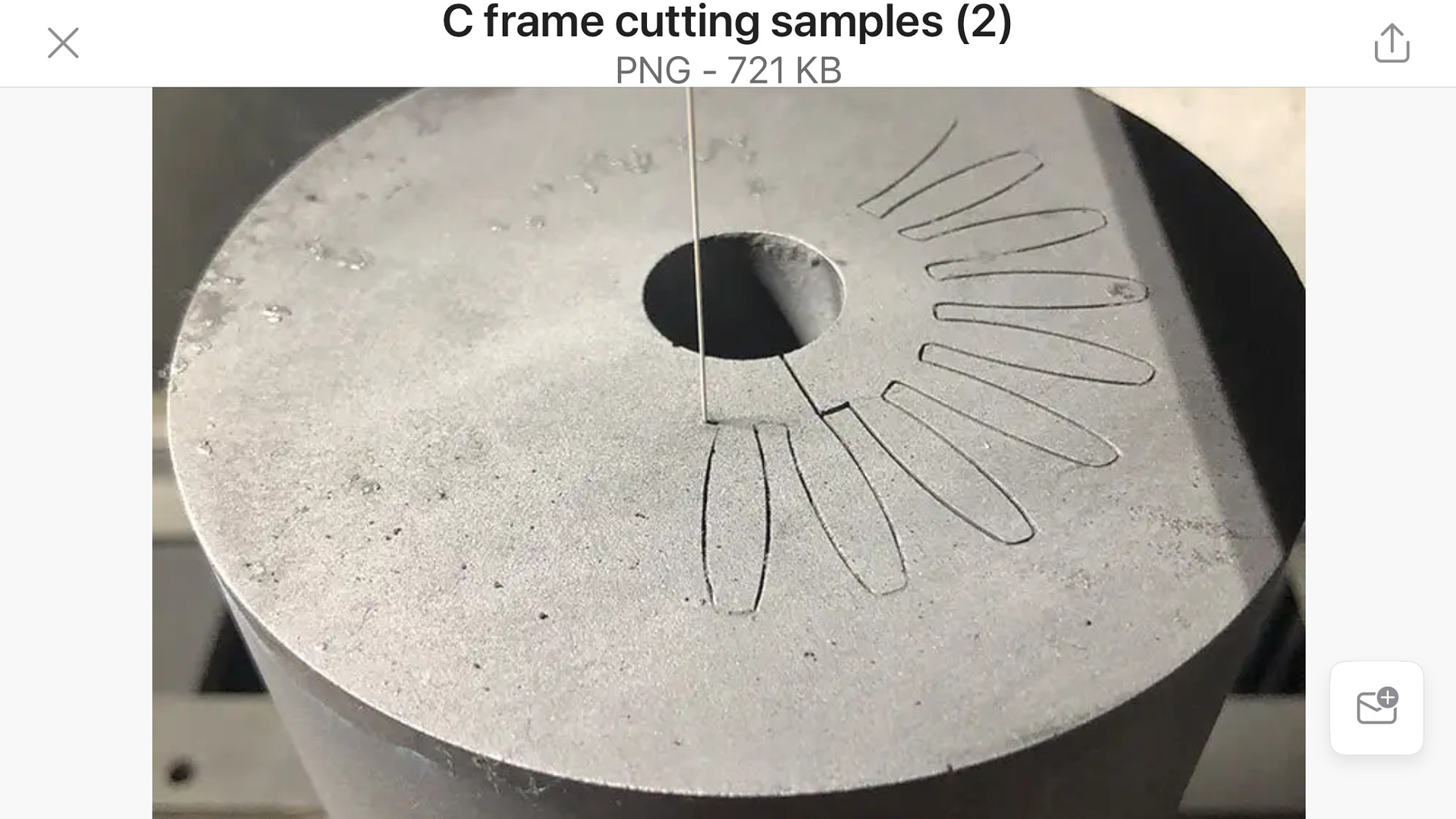

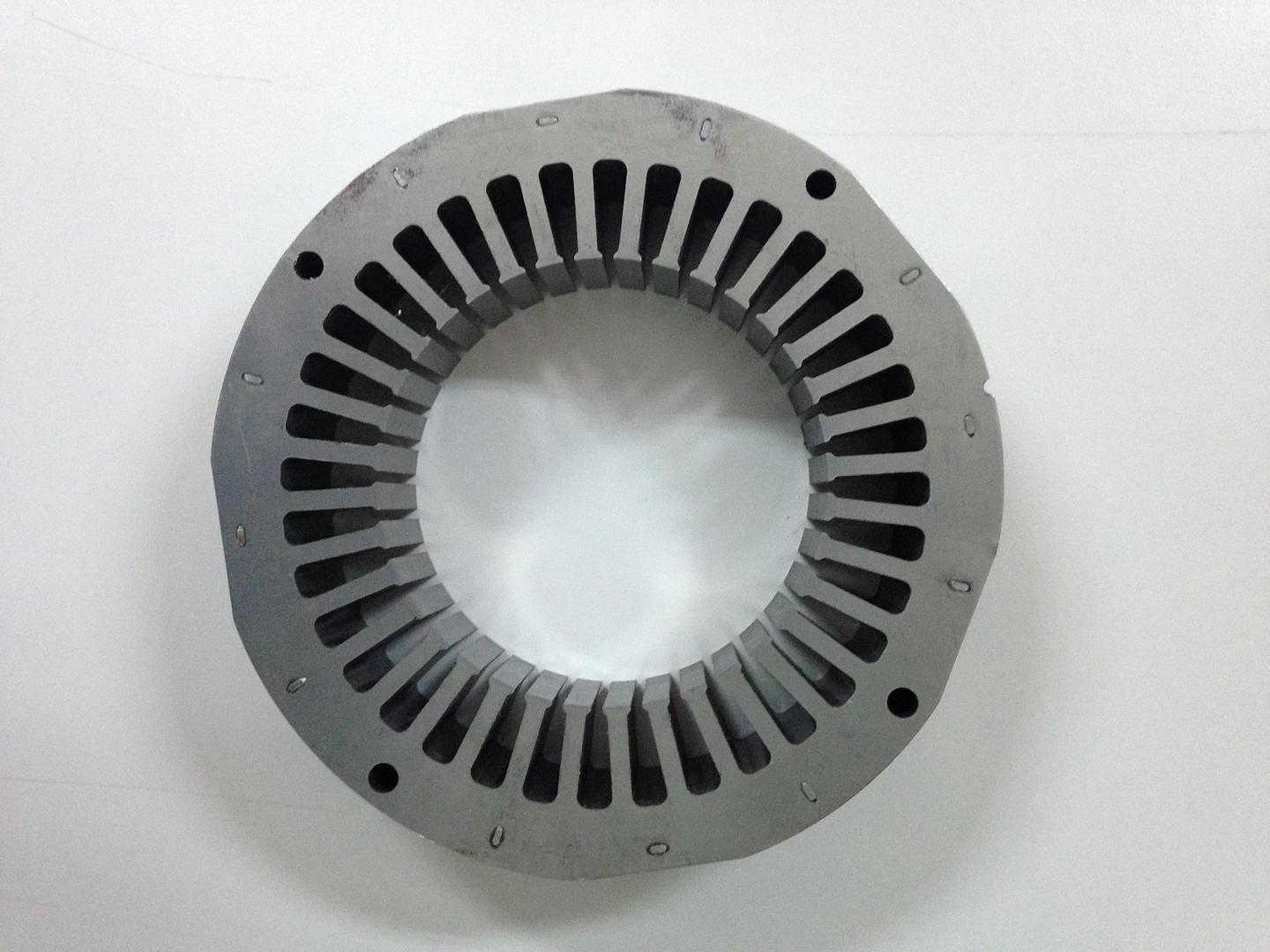

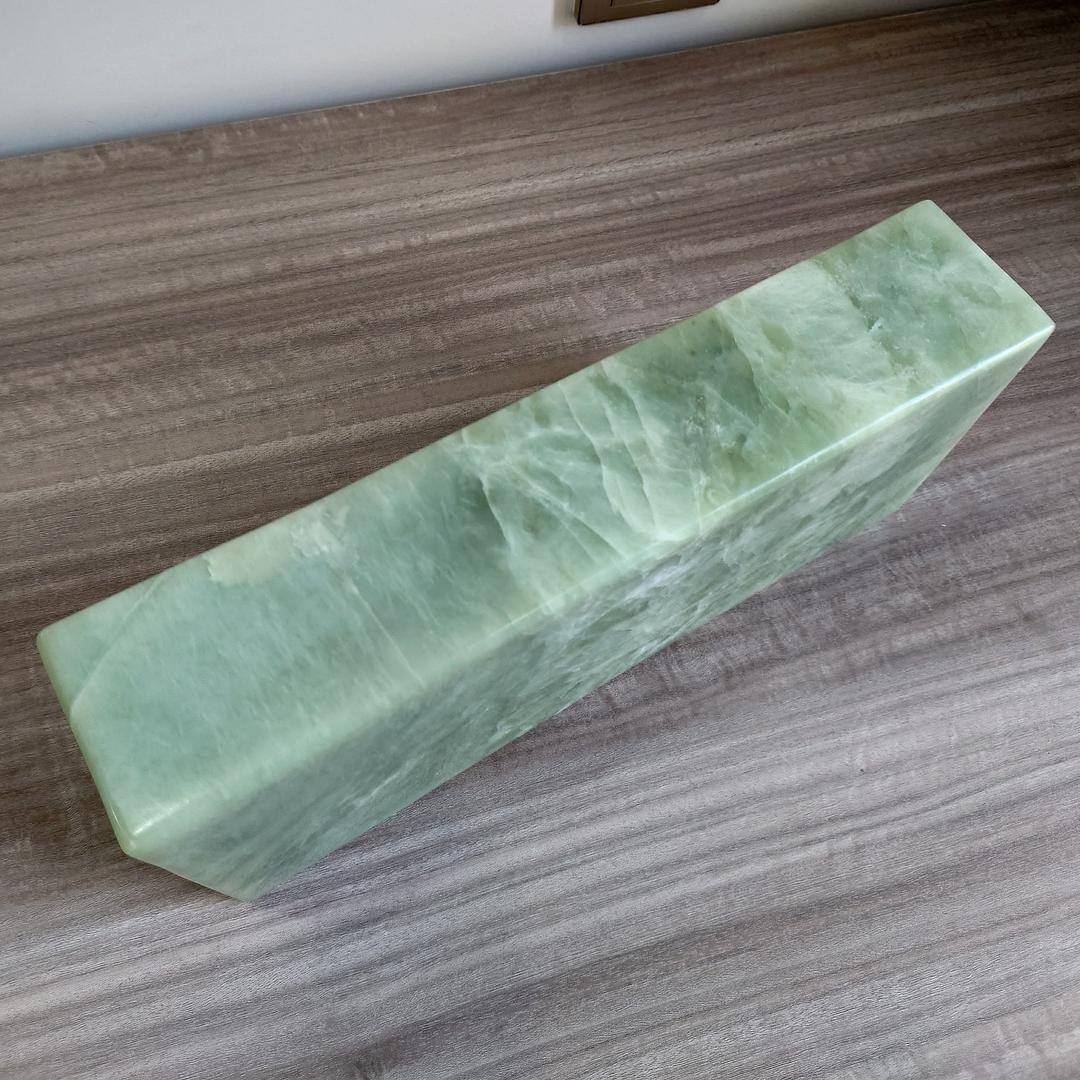

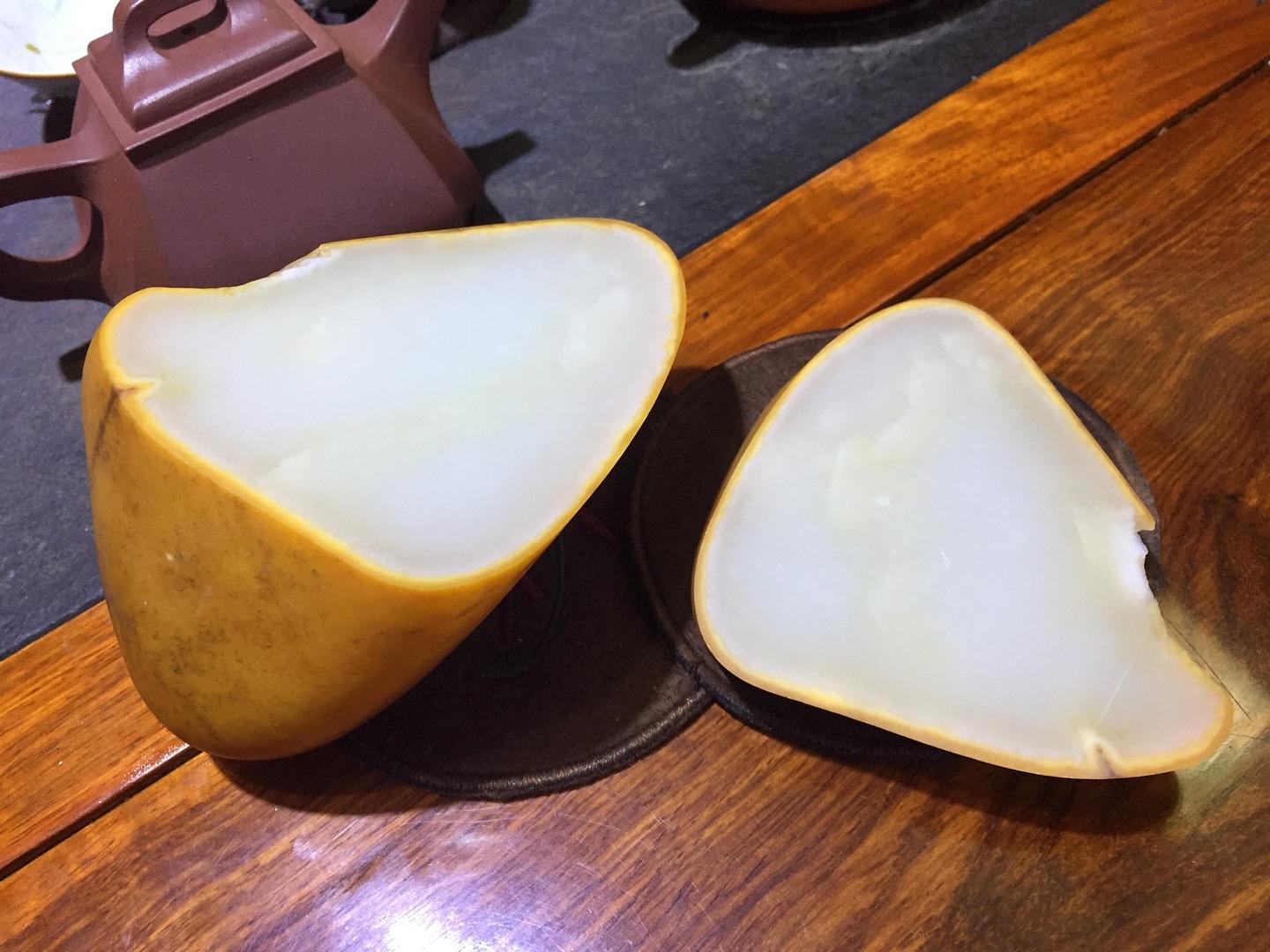

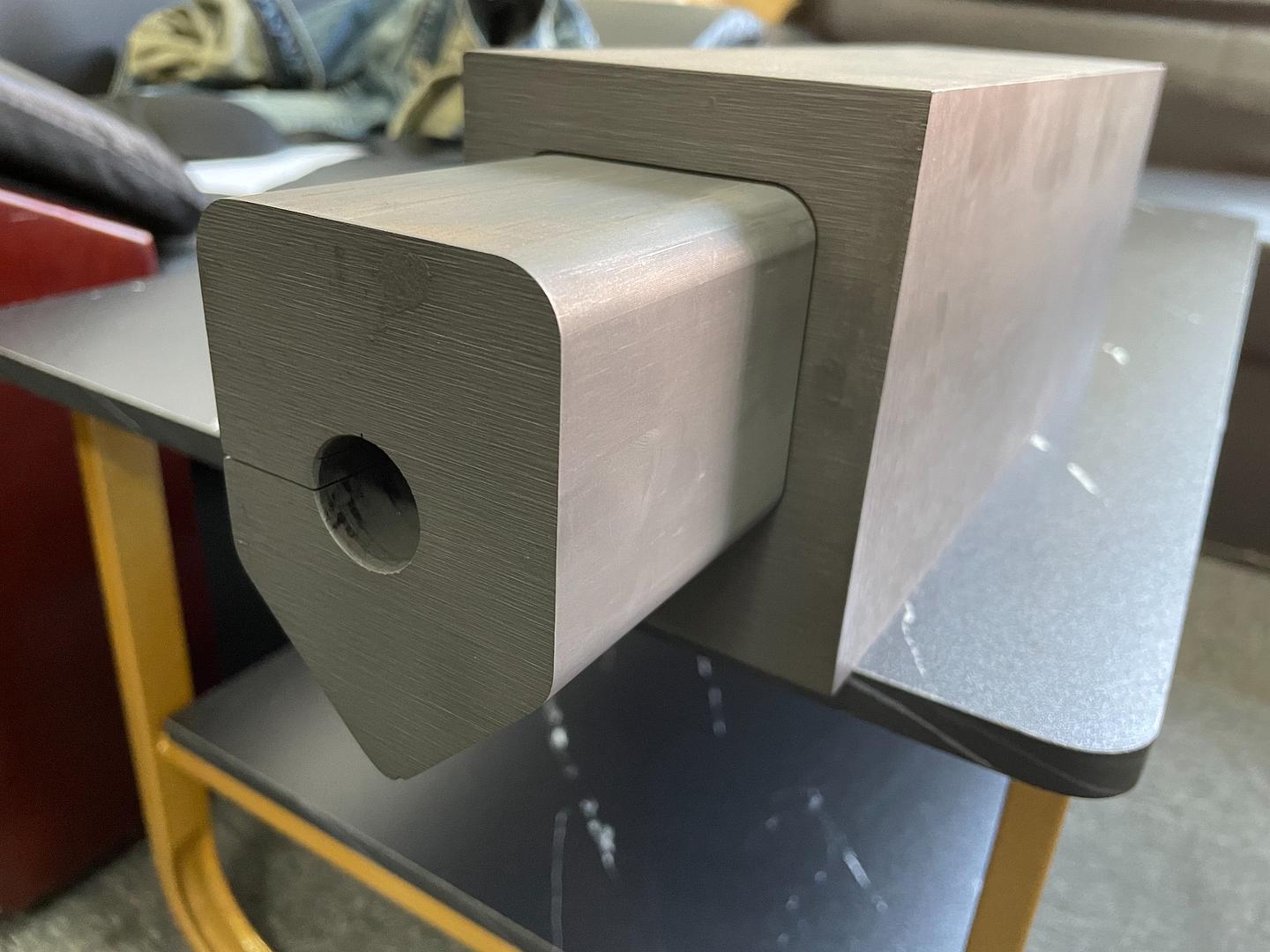

The Diamond Abrasive Saw is a full 2 Axis Cnc Machining Center that utilizes a Diamond Coated steel wire that can cut various materials such as Composites, Graphite, Ceramic, Glass, Stone, and most any non metallic materials. The Diamond Plated Wires range in size from .17 mm up to .35 mm (.007-.015"). The machine cutting envelopes range from 400 x 300 x 280 mm up to 800 x 1000 x 1000 mm in size.

The economical Diamond Wire is sold in 2000 meter rolls and the machine uses about 200 meters per load and this 200 meter spill of wire is continuously reciprocated during the cutting process. The average life of the 200 meters is from 50-100 hours or longer, depending on the material being cut, but the average cost per hour can be from $.50 to about $1.00/ hour, a very economical cutting tool! Vacuum Dust collection or water filtration are optional depending on the material being cut.

Download dxf files through the USB or LAN ports or utilize the on board Cad system that comes with the machine. On site set up and training is included at your shop. The Diamond Abrasive Saw is an economical way to cut composites, Graphite, and most every difficult to cut materials that cannot be cut by EDM.
